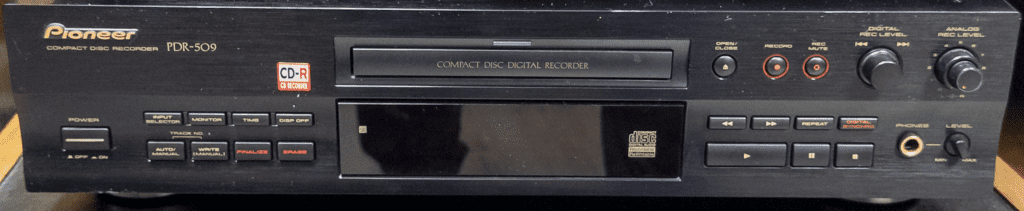

Pioneer PDR-509 CD Player/Recorder – $225
General
- Manufacturer: Pioneer
- Model: PDR-509
- Type: CD recorder
- Years of manufacture: Autumn 1999- 2001
- Made in: Japan
- Color: Black
- Remote control: Yes, Pioneer CU-PD114
- Power consumption: 18 W
- Dimensions: 420 x 105 x 300 (WxHxD)
- Weight: 3.9 kg
- Original price approx.: 900 DM
Connections
- Number of inputs: 4
- Optical digital input jack (Toslink)
- Coaxial digital input jack
LINE input socket (2x Cinch Line In)
-
- Pioneer System Bus In
- Number of outputs: 4
- Optical digital output jack (Toslink)
- Coaxial digital output socket (Cinch)
- LINE output jack (2x Cinch Line Out)
- Headphone output (6.3mm jack, adjustable)
Technical Data
- Write speed: 1x
- Hard disk: No
- Converter:
- Frequency response: 2Hz – 20 kHz
Dynamic range: 98 dB, when recording analog: 92 dB Signal-to-noise ratio playback/ analog recording: 112 dB (EIAJ) / 92 dB Distortion factor: 0.0017 % (EIAJ), analogue recording: 0.004 % * Channel separation: 98 dB (EIAJ) Channel separation: 98 dB (EIAJ)
- Search manually and by tracks
- CD-Text: no
- MP3 support: no
- Pitch control: no
- Auto play: no
- Shuffle: yes
- Title programming: Yes
- Insertion of pauses (Auto Space)
- Display of recording time and also remaining recording time
- Fading in and out possible (Fading In/Out)
Special Features
- Built-in sample rate converter – so DAT recorders and digital radio devices can also be used as signal source
- Digital synchro (1-track/all), after which finalisation is also automatic
- Skip of unsuccessful recordings programmable
Monitor circuit with extra button: So a recording in progress can be listened to and checked (at the headphone output or amplifier with monitor circuit) Display can be switched off
- Title start marker takeover from CD
- Headphone output adjustable
- The device has a sample rate converter. Digital sources like DAT and best. Radio types can be recorded so also digitally.
- Copper screws were used externally for better shielding
- Certain audio CD-RW discs can also be recorded.
- The digital and analog recording level are adjustable
- Fading possible: fading up or down of a track during recording or playback
Digital and analogue level control is possible, there is an extra control on each unit.
If you want to hear this CD Player/Recorder with any combination of other equipment we have for sale, please call the store or send us an email to make an appointment to come in for a personalized demo.
405-628-9323
