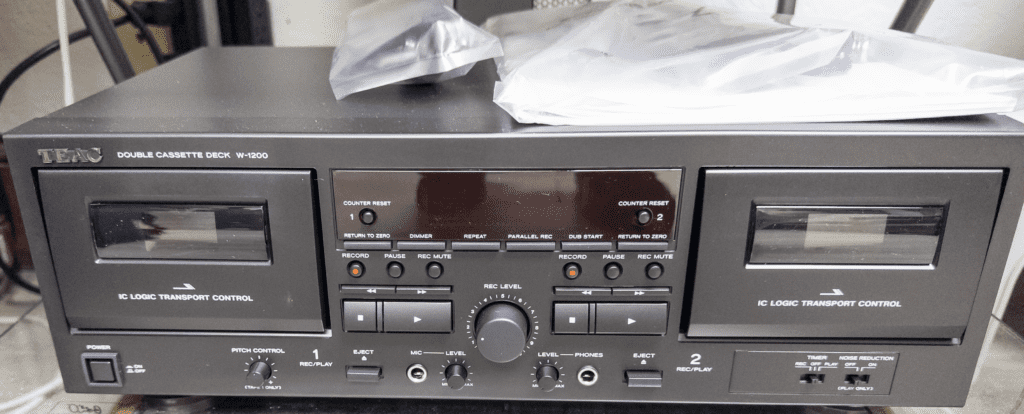

Teac W1200 Dual Cassette Deck – $800
SPECS
Deck Section
| Tracking system | 4-track, 2-channel Stereo |
| Head configuration | |
| REC/PLAY head | one each for TAPE1 and TAPE2 |
| ERASE head | one each for TAPE1 and TAPE2 |
| Tape speed | 4.8cm/sec. |
| Pitch control | ±12% (TAPE1 PLAYBACK only) |
| Fast rewinding time | approximately 120 seconds (C-60 tape) |
| Wow and flutter | 0.25% (W.RMS) |
| Frequency response | |
| Chrome tape (Type II) | 30 to 15k Hz（±4dB） |
| Normal tape (Type I) | 30 to 13k Hz（±4dB） |
| Total S/N ratio | 59dB (at max recording level input, A-weight) |
Input/Output
| Analog audio input | |
| Connectors | RCA × 1 pair |
| Nominal input level | 0.28V |
| Input impedance | 33k ohms |
| Mic input | |
| Connector | Standard 6.3mm (1/4″) stereo jack |
| Nominal input level | 0.38mV |
| Input impedance | 3k ohms or more |
| Analogue audio output | |
| Connector | RCA × 1 pair |
| Nominal output level | 0.46V |
| Output impedance | 1k ohms |
| Headphone output | |
| Connector | Standard 6.3mm (1/4″) stereo jack |
| Output power | 15mW (at 32 ohms loaded) |
| USB digital output | |
| Connector | USB Type-B |
| Protocol | USB2.0 FULL SPEED |
| Sampling frequency | 8k / 11.025k / 16k / 22.05k / 32k / 44.1k / 48k Hz |
| Bit-depth | 8 / 16bit |
General
| Operating power | |
| US / Canada | AC 120V, 60Hz |
| UK / Europe | AC 230V 50Hz |
| Power consumption | 22W |
| Dimensions | 17.1″(W) × 5.7″(H) × 11.3″(D) / 435(W) × 145(H) × 285.8(D)mm |
| Weight | |
| US / Canada | 9.3lbs. / 4.2kg |
| UK / Europe | 10.2lbs. / 4.6kg |
| Accessories | Remote control (RC-1331), AA batteries × 2, RCA audio cable, Owner’s Manual (including Warranty) |
If you want to hear this cassette deck with any combination of other equipment we have for sale, please call the store or send us an email to make an appointment to come in for a personalized demo.
405-628-9323
