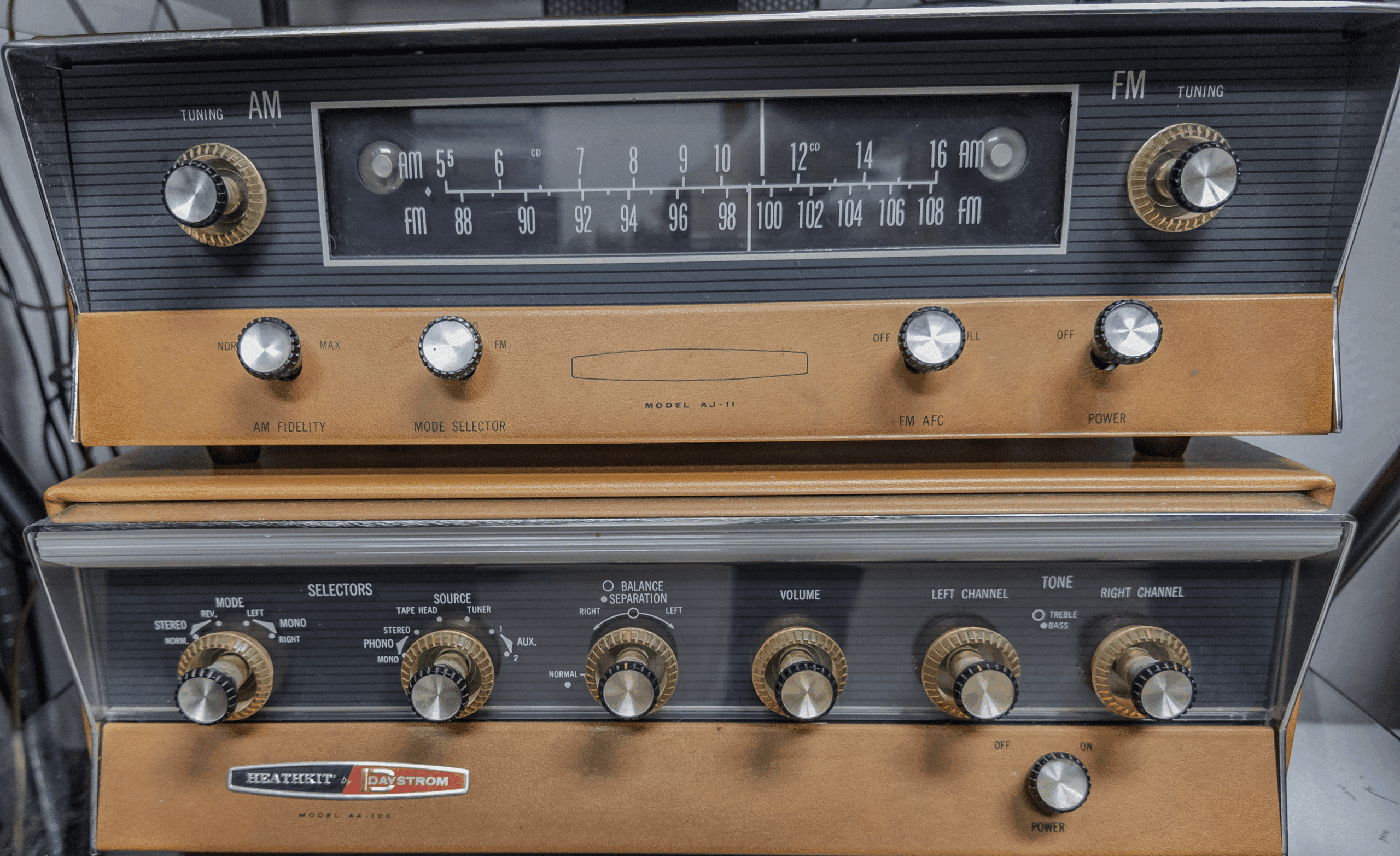

Heathkit AA-100 Amplifier and AJ-11 Tuner – $1000
AA-100 Specifications
Power output: 25 watts per channel
Frequency response: 30Hz to 15kHz
Total harmonic distortion: 0.5%
Damping factor: 15
Input sensitivity: 1.5mV (MM), 200mV (line)
Signal to noise ratio: 55dB (MM), 70dB (line)
Output: 500mV (line)
Speaker load impedance: 4Ω to 16Ω
Valve complement: 2 x EF86, 4 x 12AX7, 2 x 7199, 4 x 7591, 1 x GZ34
Dimensions: 15.25 x 5 x 13.5 inches
Weight: 28.75lbs
Year: 1960
AJ-11 Specifications
SPECIFICATIONS (general)—Tuning indicators: 2 magic eye tubes, one AM, one FM. Controls: AM bandwidth, broad/narrow; function selector, AM/Stereo/FM; FM AFC, full/half/off; AC power on-off; AM tuning; FM tuning; AM level; FM level. Tube complement: (AM) 2-6BA6, 1-6BE6, 1-6BN8, 1-6ME5, (FM) 1-6CY5, 1-6EZ8, 3-6AU6, 1-6BN8, 1-6ME5. Transformer operated, full wave voltage doubler with 2 silicon rectifiers.
If you want to hear this classic stack with any combination of other equipment we have for sale, please call the store or send us an email to make an appointment to come in for a personalized demo.
