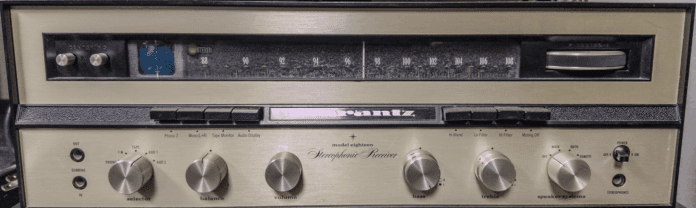

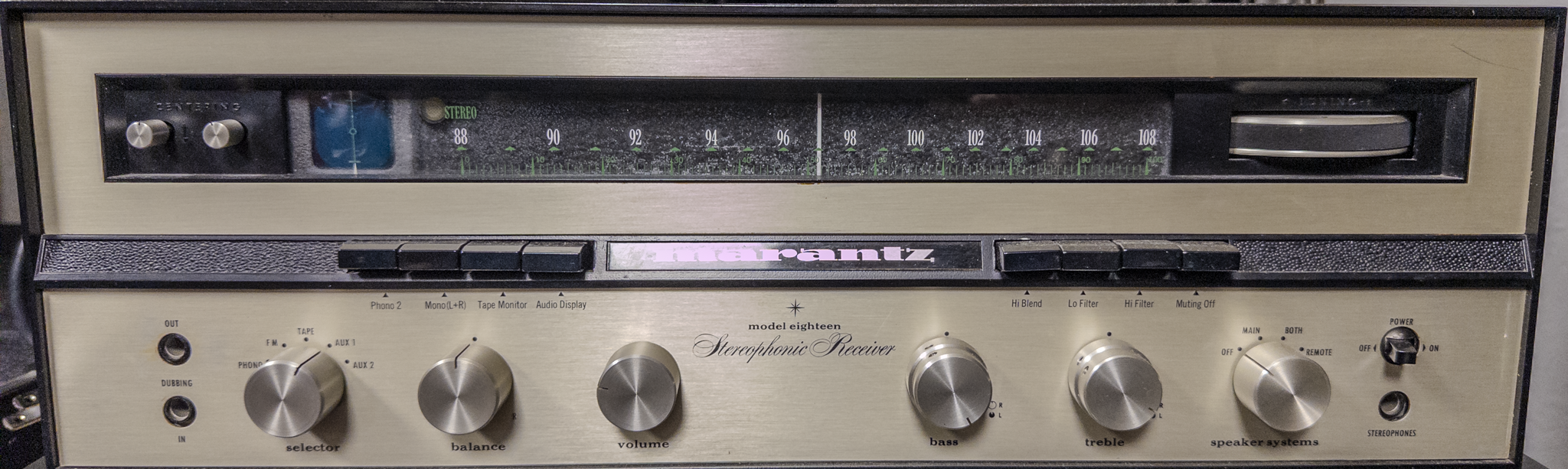

Marantz Model 18 Receiver – $1750
Description
With the exception of the cathode ray tube, the model eighteen is an all transistor receiver, based on the same advanced circuits used in the Marantz model 10B tuner, 7T solid state pre-amplifier and 15 solid state power amplifier.
It’s circuitry includes 72 transistors and 76 diodes, a total of 149 solid state devices.
A tuner, pre-amplifier and power amplifier make up the three basic components mounted on a single chassis and sharing a common power supply.
Internal connections between these components have been designed to provide optimum performance from each component while retaining full flexibility.
The model eighteen allows the connection of two pairs of loudspeakers, headphones, a turntable and record changer, an additional tuner, a TV sound source, and two tape recorders for record, playback and tape copying functions.
It’s flexibility will allow other connections to be made for special applications and it’s performance is the equal of the finest separate component system of comparable power.
Specifications
Tuning range: FM, MW
Power output: 40 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.2%
Damping factor: 30
Input sensitivity: 1mV (MM), 100mV (line)
Signal to noise ratio: 80dB (line)
Channel separation: 35dB (line)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 18-1/4 x 6 x 16 inches
If you want to hear this classic receiver with any combination of other equipment we have for sale, please call the store or send us an email to make an appointment to come in for a personalized demo.
405-628-9323
